Reed Instruments

Insulation Resistance Tester with ISO Certificate, Digital

Model: NJW156

Mfr. No.: R5002-NIST

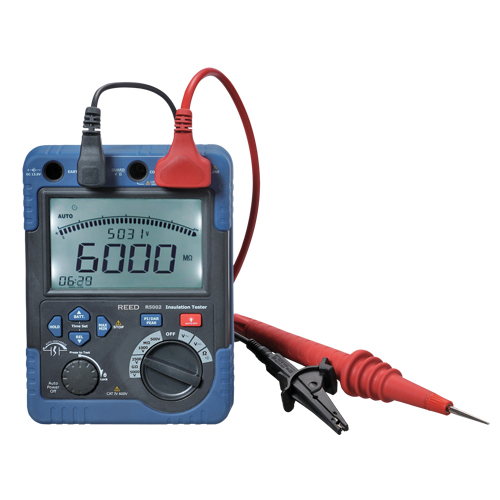

  • Insulation Resistance Tester with ISO Certificate, Digital Toolneeds Inc.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,165.00 / Each

0 In Stock

Ships in 3-4 weeks

Shipping times are based on information available at the time of order and are subject to change.

Display Type

Digital

Insulation Resistance - Test Voltages

500V, 1000V, 2500V, 5000V DC

Insulation Resistance - Measurement Range

0 to 60.0G Ohms

Insulation Resistance - Accuracy

±5% rdg. +3 dgt.

Insulation Resistance - Open Circuit Voltage

+20%, -0%

Insulation Resistance - Rated Current

1 to 1.2mA

Resistance Tests - Measurement Range

0.1 to 6000 Ohms

Resistance Tests - Accuracy

±1.5% rdg. +10 dgt.

Resistance Tests - Continuity Test

Buzzer sounds at <50 Ohms

Resistance Tests - Short Circuit Current

=200mA

  • Wide range measurements from 500V to 5000V and up to 60GO
  • Sources up to 1.2mA current during tests to offset capacitance load
  • Polarization index measurement (PI)
  • Dielectric absorption ratio measurements (DAR)
  • Time set measurement function
  • Auto-discharge function and voltage output warning function
  • Live circuit warning symbols plus audible warning
  • Live circuit detection prevents insulation test if >30V is detected
  • Max/Min, Peak, Relative value and Data Hold functions
  • 6000-count digital display with bar graph and backlight
  • Meets IEC61010-1 Cat. IV 600V safety standards
  • Items with calibration certificates are non-returnable and non-refundable due to the limited validity of the certification
