FLIR

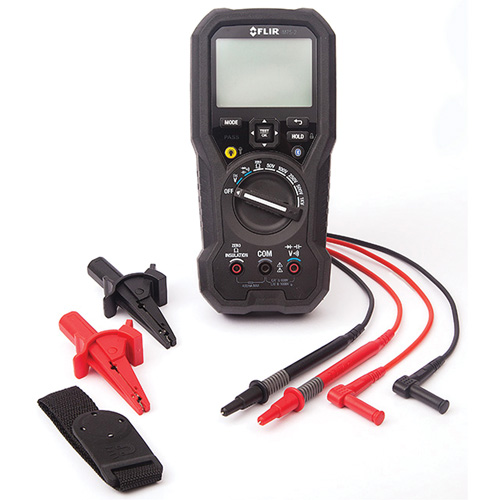

Insulation Tester and Digital Multimeter with METERLiNK®, Digital

Model: ID308

Mfr. No.: IM75-2

  • Insulation Tester and Digital Multimeter with METERLiNK®, Digital Toolneeds Inc.

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$939.00 / Each

0 In Stock

Ships in 2-3 weeks

Shipping times are based on information available at the time of order and are subject to change.

Display Type

Digital

Insulation Resistance

4.000 MΩ ± (1.5% + 5 digits) 40.00 MΩ ± (1.5% + 5 digits) 400.0 MΩ ± (3.0% + 5 digits) 4000 MΩ ± (3.0% + 5 digits) 4.1 G to 20.0 GΩ ± (10.0% + 3 digits)

AC Voltage

1000.0 V: 50 Hz to 60 Hz ± (1.5% + 5 digits), 61 Hz to 500 Hz ± (2.0% + 5 digits)

DC Voltage

1000.0 V ± (0.1% + 5 digits)

Max. Bluetooth Range

10 m (32 ft)

Memory

99 Storage Locations

Battery Type

(6) 1.5 V AAA Alkaline Batteries

Certification(s)

FCC Class B, CE, UL, UKCA, RCM

Drop Test

3 m (9.8 ft)

Operating Temperature

0°C to 50°C (32°F to 122°F)

Country Of Origin

Taiwan

  • Both an advanced multifunction digital multimeter and a premier handheld insulation tester with functions for installation, troubleshooting and maintenance for professionals
  • Features several specialty insulation modes such as polarization index, dielectric absorption, and earth bond resistance
  • Insulation tests can be performed instantly, continuously, and over a timed duration to allow for in-depth assessment
  • The multi-color LED indicator in compare mode makes pass/fail determinations easy and visible
  • Use the METERLiNK® app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing
  • Advanced multifunction digital multimeter and premier handheld insulation tester for installation, troubleshooting and maintenance professionals
  • Insulation voltage testing up to 1 kV, measuring insulation resistance from 4 M to 20 G
  • Advanced variable frequency drive (VFD) filtering and dual display shows voltage and frequency at once
  • True RMS DMM measurements features reliable performance and 1000 V range
  • Powerful LED worklights eliminate the need for a flashlight in dim lighting
  • Durable, double-molded construction with IP54 rating and 3 m drop tested
  • Multi-color LED indicator with Compare Mode makes pass/fail determinations easy and visible
  • Capture readings, create reports and easily share them with your team
  • Set custom alarm thresholds to provide additional assurance of operating ranges while performing testing procedures
